fixed Gas-Hydraulic Buffers

Llalco manufactures high-technology shock absorbers whose performance is unique for this type of equipment. They stop trains and maintenance vehicles avoiding serious damages to the passengers, rolling stock and track infrastructure. Llalco manufactures a wide range of models with a 10 to 3.000 cm stroke and control the deceleration to the desired value.

REFERENCE GALLERY

Llalco manufactures high-technology shock absorbers whose performance is unique for this type of equipment. Llalco manufacture a wide range of models with a 10 to 3.000 centimetre stroke. These elements basically consist of two chambers: a nitrogen gas chamber and an oil chamber, which act by means of a sophisticated mechanism, forming an oil-pneumatic buffer with the following characteristics.

SLIDING BUFFERS. ADAPTED SOLUTIONS FOR EACH PROJECT. EXAMPLES:

Topera fija

LL-2-712-F-H-S Buffer Stop:
with multi-purpose front end for high-speed, long-distance, medium-distance and local trains.

Corredor Mediterráneo
LL-2-712-F-H Buffer Stop: for all types of trains with side impact buffers approved by RENFE-ADIF
topera fija 5

LL-712-F-D Buffer Stop:
removable fixed stopper on metal frame for workshops with low speeds.

topera fija 7

LL-9-F-H Buffer Stop:
optimal for metro, tram and light rail systems. Can be integrated in urban areas.

99% EFFICIENT

They are 99% efficient, i.e. 99% of the energy produced by the impact is absorbed by the Llalco capsule. This has been confirmed in tests conducted by European railway companies.

Constant comfort deceleration

As regards deceleration, we should explain that it is not sufficient just to stop the train after an impact; the best way is to do so by means of a predetermined and constant deceleration from the beginning of the impact until the train has come to a complete standstill, without producing recoils that would have fatal effects for passengers and cause material damage. Llalco achieves this by enabling a deceleration that is comfortable for passengers and safe for the integrity of the train, using a system that retracts the buffer at a constant, previously calculated speed.

MAINTENANCE

Llalco-pneumatic buffers do not require any regular maintenance, since only one part of the mechanism moves when they act. As a result of this, their performance remains exactly as calculated for more than fifteen years, after which time the gaskets can simply be changed and the unit will continue to be operational.

QUALITY

Our buffers meet the highest quality standards and correlate with the unique combination of our shock energy management simulator.

PRICE

Our shock absorbers are completely cost-effective, as they drastically reduce the cost of maintaining and repairing the rolling stock, as our clients can confirm (below you will find a reference to the Spanish organisations that have put their trust in this system), since impacts against the buffer stop or between carriages are absorbed, within the speed range for which they were designed, with the same smoothness and efficiency, thus avoiding potential damage and/or discrepancies due to costly repairs.

Reliability

Our equipment is approved and/or standardised by the railway companies of every country (see the non-exhaustive list in the general catalogue), showing through their confidence that Llalco is cost-effective for them.

reference gallery

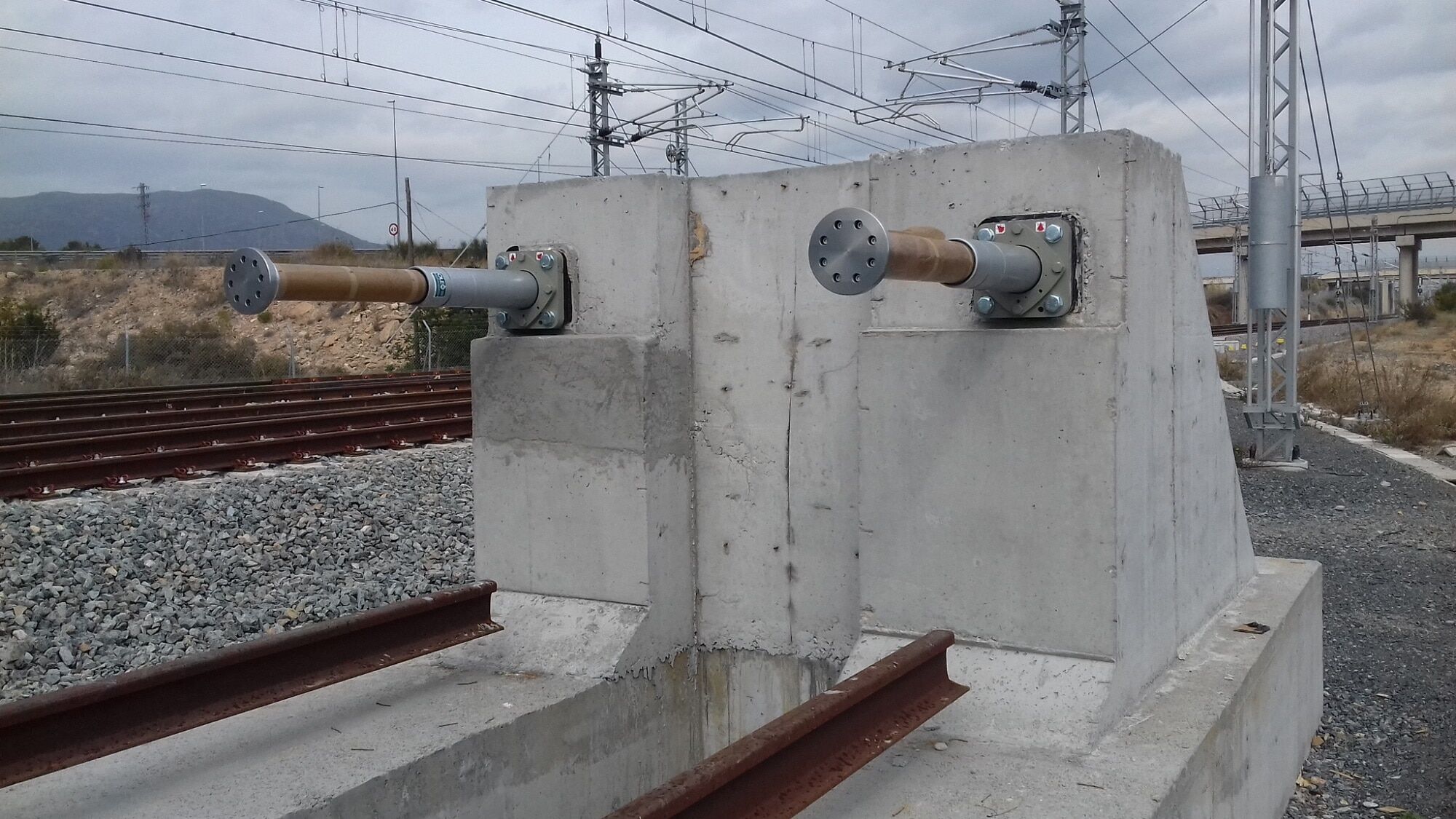

Fix buffer stops - Toperas fijas
